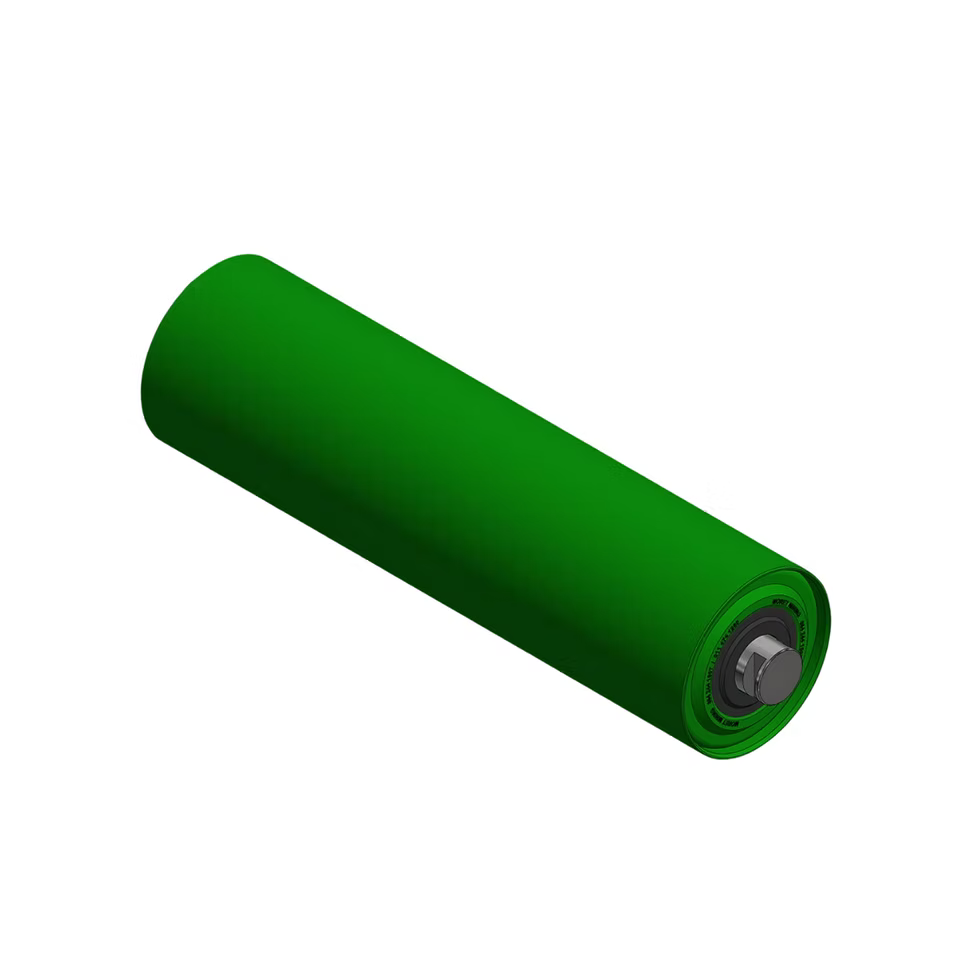

This Carry roller is engineered for high-capacity industrial applications, specifically designed to support 1800 mmbelt widths. Built with a robust 4 mm thick steel shell and a 159 mm diameter, it provides the structural integrity required for heavy material handling.
Key Features
Rugged Construction: Features a precision-machined steel shell and shaft, finished with a protective paint coating for enhanced durability and corrosion resistance.
Precision Rotation: Equipped with high-quality 6306 TN9 C4 bearings (30 mm bore) to ensure low rolling resistance and extended service life under high-clearance requirements.
Standardized Fit: Designed for seamless integration into existing systems with a Type H shaft end (12 mm fit width) and a total shaft length of 716 mm.
Optimized Dimensions: Features a 670 mm tube length, providing a reinforced and stable support base for wide-span mining or industrial load-side conveyor frameworks.
Specifications at a Glance:
Shell: 159 mm Ø × 4 mm Wall × 670 mm Length
Shaft: 30 mm Ø (Bearing) / 22 mm Ø (Fitting)
Application: Heavy-duty bulk handling and mining conveyors (Load Side).
